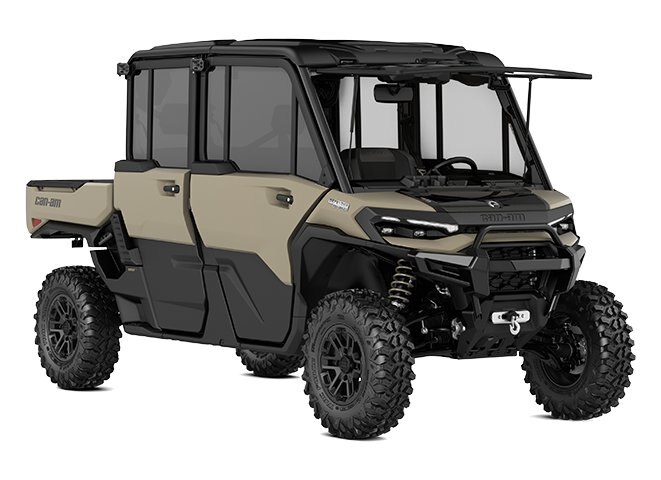

The Defender MAX Limited HD11 delivers an uncompromising, robust and tech-forward experience, providing an unmatched ride for you and a passenger. This formidable machine is engineered for riders who demand peak performance.
Specifications
Model
Defender HD11
Category Name
UTV - Side x Side
Year
2026
Sale Type
New
Manufacturer
Can-Am
Quantity
0
Manufacturer Qty
0
Color
Desert Tan Carbon Black
Seat
Adjustable driver seat, 40/20/40 Bolster
Engine
95 hp / 70 lb-ft Rotax® ACE (Advanced Combustion Efficiency) 999 cc triple cylinder, liquid cooled
Features
Full heavy-duty HMW plastic skid plate, Large heavy-duty front bumper, mudguards, Floor mats
Accessories
4,500 lb (2,041 kg) winch with synthetic cable and autostop
Gallery
main features
MAIN_FEATURES
Connected Ride
Everything you need at your fingertips
Added situational awareness with a clear view of rear and front* camera angles. Easily control accessories from the display. Manage media within the applet on your touchscreen. *Available on certain models
Refined Power Delivery
New work-tuned HD11 engine
The new 999cc inline-3 HD11 engine delivers 95 HP and 70 lb-ft of torque. Paired with a smooth-shifting transmission, pDrive, and Quick-4Lok or Smart-Lok front diff, it’s built for control and drivability.
Best-in-Class Utility Features
Class-leading clearance, cargo, towing
With exceptional ground clearance, long suspension travel, serious towing and cargo capacity, and reduced NVH, this Defender is built to lead—on the job, off-road, and everywhere in between.
Advanced HVAC & Enclosure System
Smart HVAC with total contro
Ride in comfort with a sealed cab and optional HVAC system with better airflow, better cooling capacity, fast defrost, rear vents, and refined controls—all designed for quieter, smarter, all-season performance.
Engineered for Easy Maintenance
Easier access, smarter design
With smart service points and tool-free access to key areas, it’s built for less downtime. Double-bounded bushings, bolted skid plate, and ready-to-work durability seal the deal.
engine
Type
95 hp / 70 lb-ft Rotax® ACE (Advanced Combustion Efficiency) 999 cc triple cylinder, liquid cooled
Engine
HD11
Drive_Train
Selectable Turf Mode / 2WD / 4WD with exclusive Smart-Lok*
Transmission
pDrive primary and Quick Response System X (QRS-X) CVT with high airflow and Electronic Drive Belt Protection L / H / N / R / P
Driving_Assistance
CVT Engine Braking Sport / Normal / Work modes Speed Limiter
suspension
Suspension
Standard
Rear_Shocks
Twin tube gas charged shocks
Front_Shocks
Twin tube gas charged shocks
Rear_Suspension
Arched Double A-Arm / 12 in. (30.5 cm) suspension travel
Front_Suspension
Arched Double A-Arm with sway bar / 12 in. (30.5 cm) suspension travel
tires/wheels
Wheels
15 in. cast-aluminum
Rear_Tires
XPS Trac Force 30 x 9/10 x 15 in.
Front_Tires
XPS Trac Force 30 x 9/10 x 15 in.
brakes
Rear
Dual 236 mm disc brakes with hydraulic twin-piston calipers (28 mm)
Front
Dual 262 mm disc brakes with hydraulic twin-piston calipers (32 mm)
Brakes
Standard
dimensions / capacities
L_x_W_x_H
162.4 x 65 x 81.4 in. (412 x 165 x 207 cm)
Ground_Clearance
14 in. (35.6 cm)
features
Gauge
4.5 in. wide digital display with keypad & 10.25 in. touchscreen display
Winch
4,500 lb (2,041 kg) winch with synthetic cable and autostop
Protection
Full glass tilt up windshield with wiper kit, Full color match front doors with locks and electric opening tinted windows, Rear color match doors with roll down window, Rear tinted glass window, Panoramic mirror, Full heavy-duty HMW plastic skid plate, Full hard roof with liner and dome light, Large heavy-duty front bumper, Mudguards, Floor mats
gauge
Type_of_gauge
4.5 in. wide digital display with keypad & 10.25 in. touchscreen display
